E-MEM UF membrane series

Product features


Hangzhou E-MEM membrane module is widely used in the field of

dyeing and printing wastewater reuse, RO pretreatment (double

membrane process) and industrial wastewater treatment, and etc.



UF application range

In recent years, the application of UF technology can be roughly divided into the following parts:

Ø  Advanced treatment of industrial wastewater, such as reclaimed water, reprocessing of oilfield water etc.

Ø  Concentration, purification and separation of polymer solutions in the chemical, food and pharmaceutical industries, sterilization, clarification and purification of biological solutions and beverages.

Ø  Preparation of ultrapure water and pretreatment of reverse osmosis, such as groundwater treatment, surface water treatment, brackish water or seawater desalination pretreatment, drinking water treatment, boiler feed water treatment, etc.


Product performance characteristics

High strengthhigh flow rate and long life cycle

Ø  Breaking strength is above 110N

Ø  PVDF material is well-resistant to chemical washing agent and

long-term resistance to strong acid & alkali washing

Ø  The average pore distribution can guarantee the

high filtration precision of the membrane

Ø  Own patent hydrophilic modified material guarantees the stable

flow rate and good recovery ability.

Ø  Large space for pollutant storage, which makes membrane easy

Washing and enhances its applicability.


Structural design features


Ø  The loading density of membrane fiber is high

Ø  Supporting material is not necessary

Ø  Concentration polarization can be ignored

Ø  Good economic returns

Ø  Applied to various industries, especially the large-scale industry. It can reduce the floor area and the construction cost and achieve to the economic membrane design.

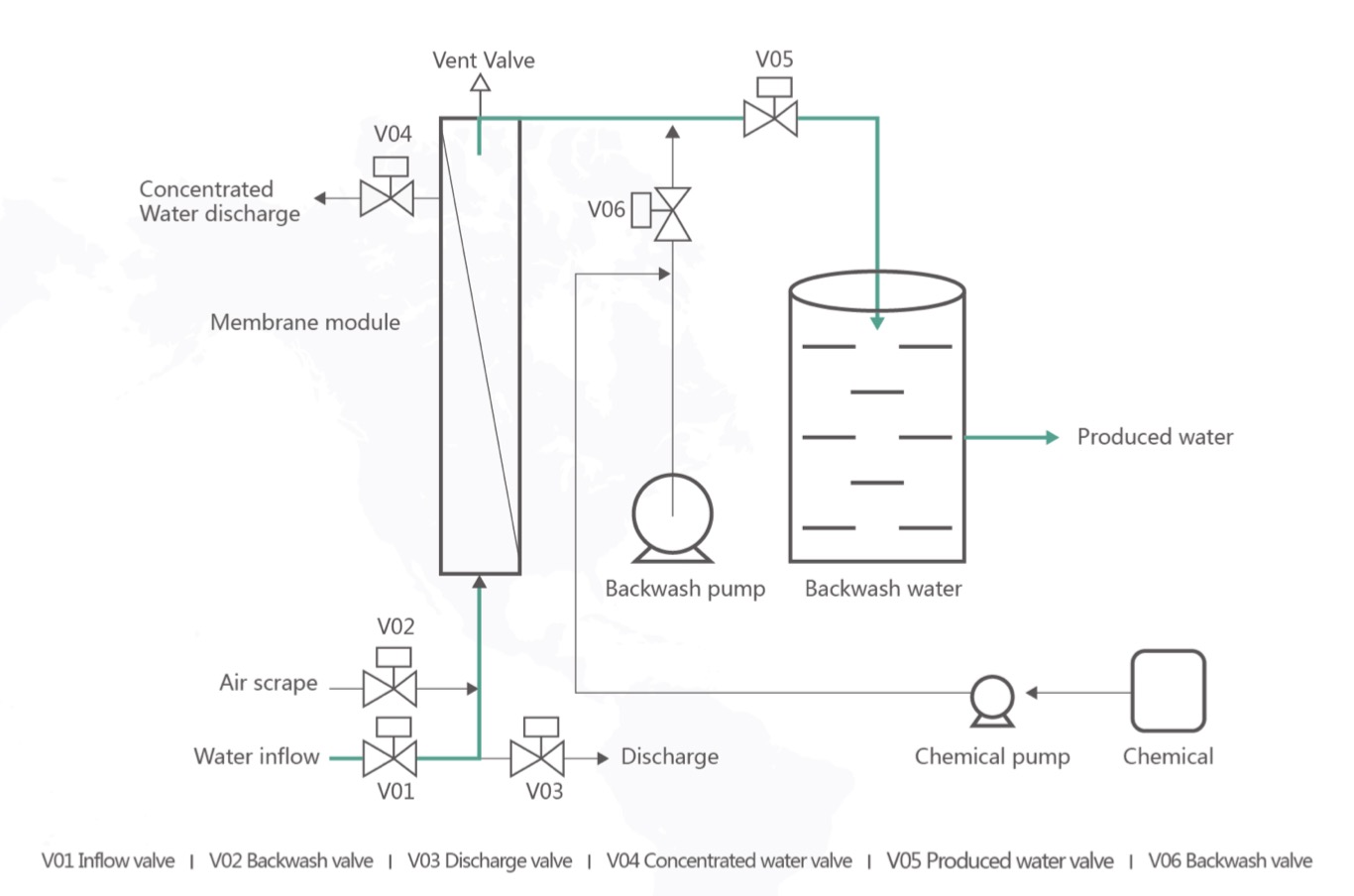

Standard process flow

Design Guidelines

Suggested feed water quality

Suggested feed water quality table

Index

Suggested range

Raw water for UF

Tap water, groundwater, surface water, sea water or sewage meeting the national (China) Level II (GB8978-1996) discharge standard or corresponding feed liquid

pH value

running211cleaning 112

Turbidity

200NTU

Maximum feed particle size

≤0.05mm

Feed oil content

3mg/L(Otherwise, oil removal pretreatment must be carried )

Residual chlorine

≤200mg/L

Cleaning residual chlorine concentration

≤2000mg/L

Feed water temperature

≤45℃

Mark: suggested data which as for your ref.


Design flux

Feed water condition

Suggested design flux (L/m2.h)

Feed water source

Turbidity

TOC (mg/L)

Underground water

<2

<1

50-100

Tap water

<3

<2

50-75

Surface water

2-5

<2

50-60

Surface water

5-15

<5

40-50

Sea water

<5

---

50-60

Advanced treated wastewater

0-5

----

30-50

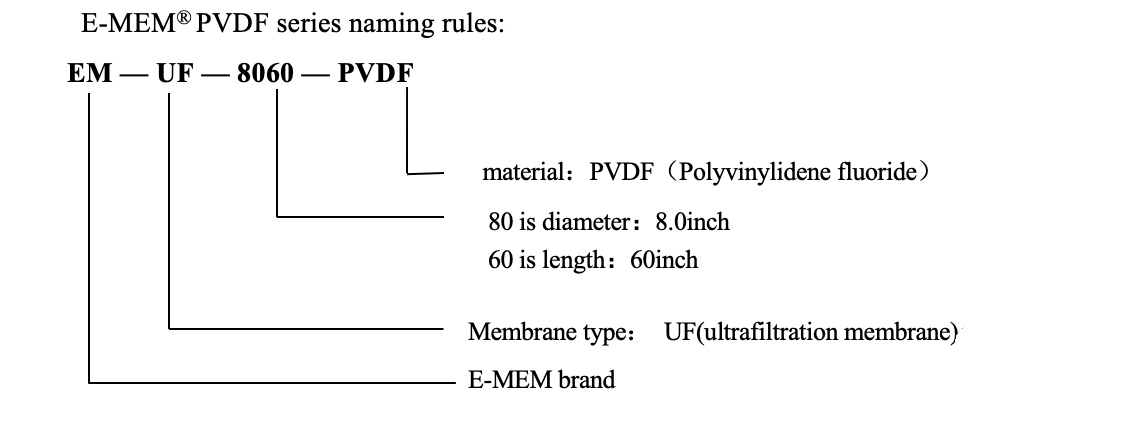

Product model description

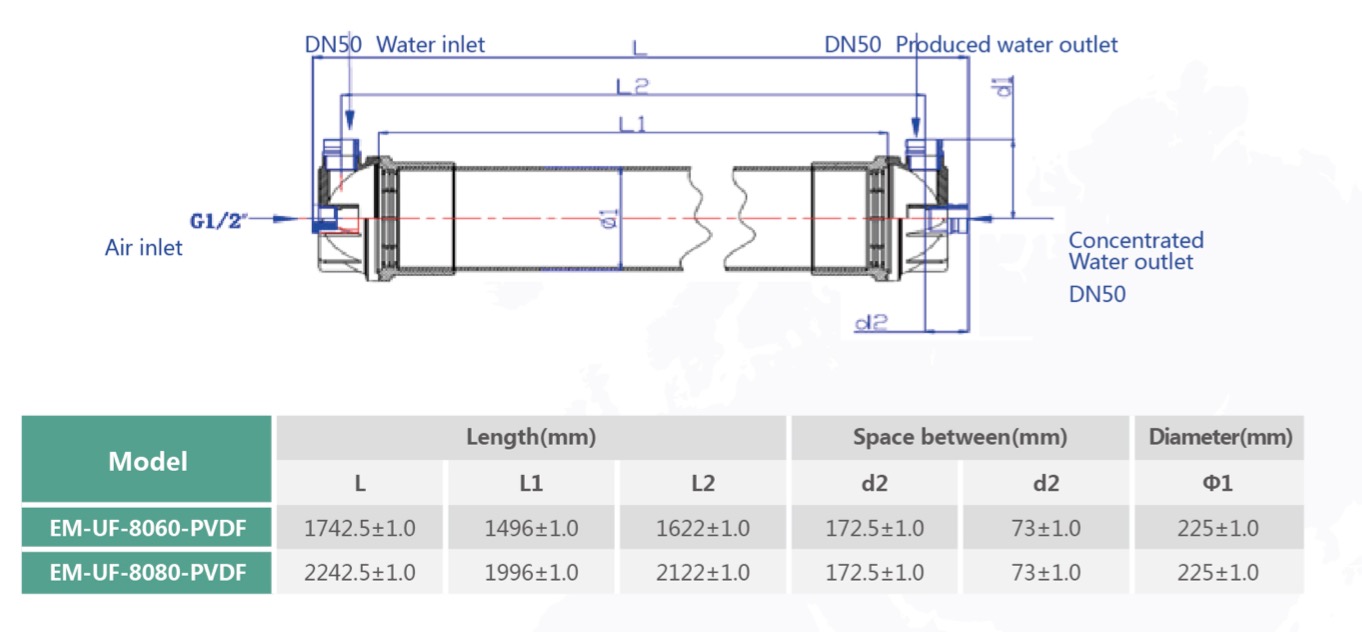

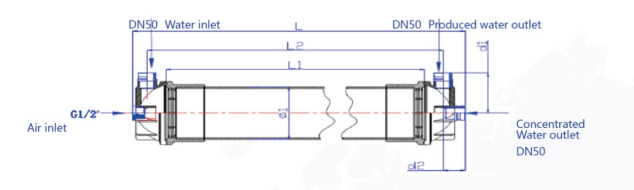

Specification and size

Product specification sheet

Membrane Parameter

Membrane material

PVDF

Membrane type

Out-in

Inner/outer diameter

0.8/1.6mm

Pore size

0.02um

Fiber strength

>110N

Module Parameter

Housing material

UPVC

Cap material

UPVC

Cap clamp material

304 SS

Seal-ring material

EPDM rubber

Interface connection

Coupling

End sealing martial

Epoxy resin/PU

Model Module

EM-UF-8060-PVDF

EM-UF-8080-PVDF

Area (m2)

55

75

Weight (wet)

40kg

50kg

Working Condition

Operation mode

Full flow/ cross flow

Working temperature

(5-45)

Max water pressure

<3 bar

Working pH range

2-11

Max TMP

<2 bar

Max inflow water particle diameter

300um

Max backwash pressure

≤1.5bar

Max tolerant concentration of NaClO

2000mg/l

Oil

<3mg/l

Produced water quality

Turbidity

≤0.15NTU

Produced SDI15

≤3
