The core of MBR technology is membrane modules; Yimeng Company has developed E-MEM through the development of independent patents (specific patents as described in detail), the introduction of advanced production equipment, and the development of E-MEM ® The MBR membrane product uses PVDF (polyvinylidene fluoride) as the film-forming material, which has the characteristics of high tensile strength, high chemical stability, high filtration accuracy, simple operation, and low energy consumption. At present, the product has been widely used in municipal sewage treatment, surface water treatment, and reclaimed water reuse. Productfeatures ZhejiangE-MEMcurtain-typeMBRmembraneisproducedbyownpatentcompositespinningtechnology

Product features

Zhejiang E-MEM curtain-type MBR membrane is produced by own patent composite spinning technology. On the surface of the textile tube, it is the high-performance separating layer of PVDF. By optimizing the formula of separating layer and the craft of surface pretreatment, it makes the hollow fiber of MBR featured with super-high tensile strength and high separation accuracy.

E-MEM MBR application：

Ø Drinking water treatment, the removal rate of ultrafiltration membrane can reach 61og for bacteria and 41og for viruses, so water plants and water users do not need to worry about bacteria and viruses, in same time the recovery rate can be 99%

Ø Surface water treatment，used for irrigation or as water for reverse osmosis to prepare purified water.

Ø Seawater treatment pretreatment, MBR system can control the water quality of seawater very confidently, provide high quality water entry for reverse osmosis system, and ensure the stable operation of reverse osmosis system.

Ø Wastewater recycling to meet industrial reclaimed water usage.

Product performance characteristics

Super-high strength hollow fibers, stable good water quality

Ø PVDF material is excellent of chemical resistance, it is not easy to corrode by acid and alkali, strong oxidant and halogen, etc.

Ø 0.1um membrane pore size and distributed averagely, which can effectively remove almost all suspended matter, bacteria, colloid and particles in water, ensuring the produced water quality. The suspended matter and turbidity of effluent water are zero and can be directly reused.

Ø Achieves absolute separation between HRT and sludge age.

Ø Supporting fiber system make strength of hollow fiber greater than 150N and instant burst pressure 0.45MPa

Ø The concentration of microorganisms in the reactor was as high as 5000~10000mg/L, with high biochemical efficiency and strong impact load resistance.

Structural design features

Compact structure, simple disassembly and installation, convenient application, greatly reduce the floor space of membrane components

Good energy-saving design, independent research and development of the aeration system, can achieve good cleaning effect

The frame structure made of SU316 stainless steel can resist corrosion and rust

Product diversity, a variety of specifications can be available

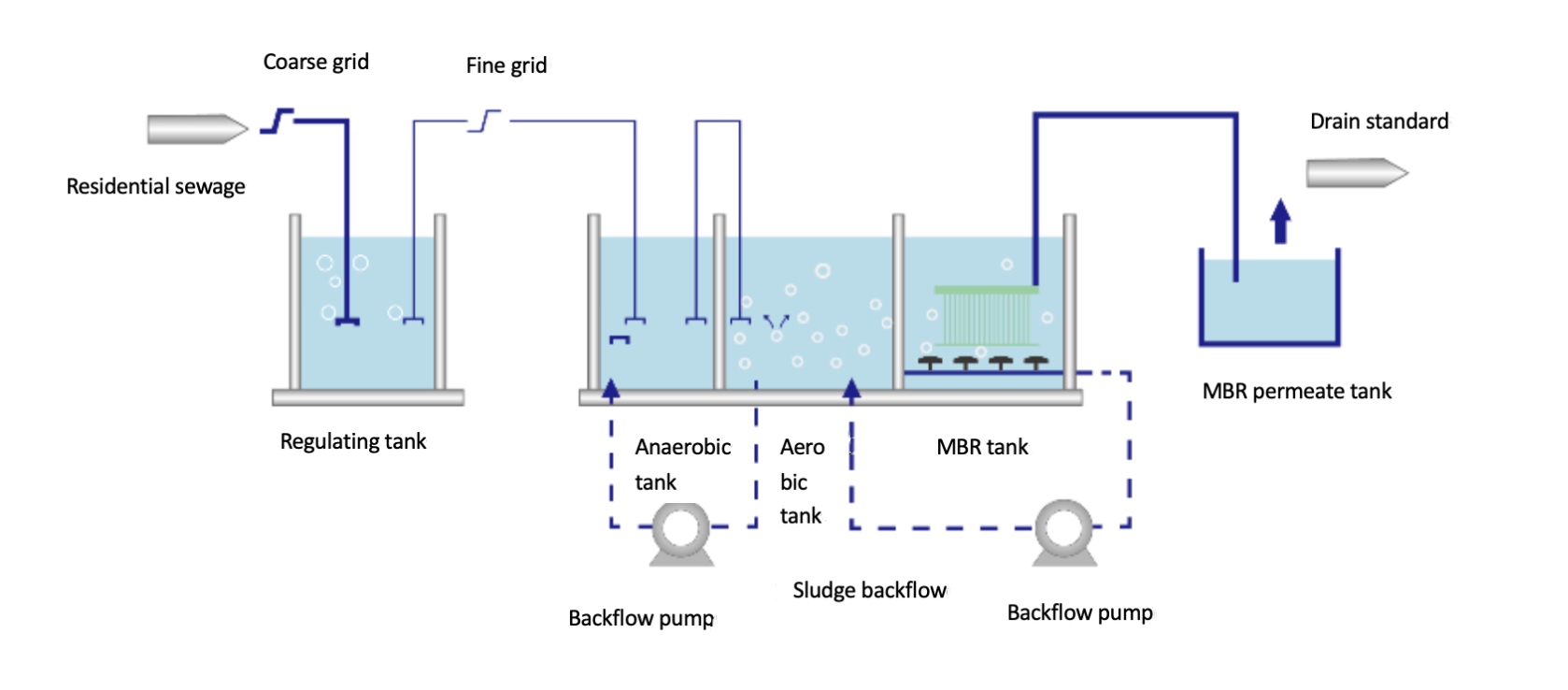

Standard process flow

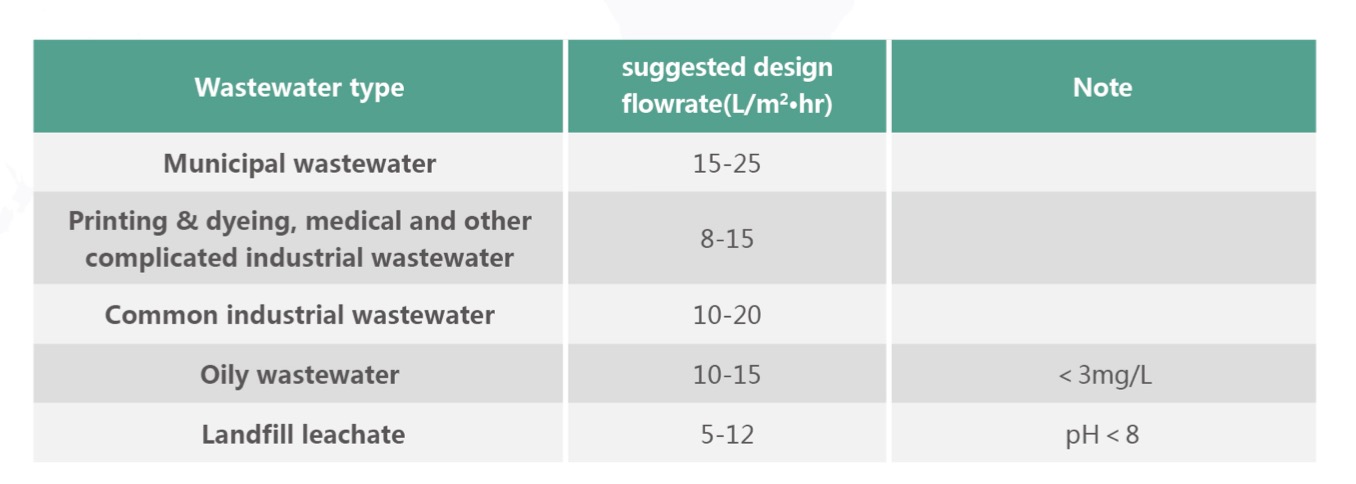

Design Guidelines

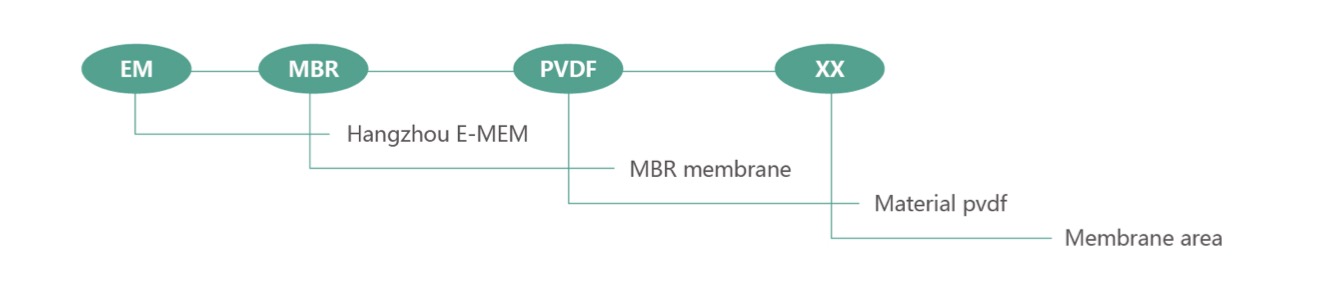

Product model description

Specification and size

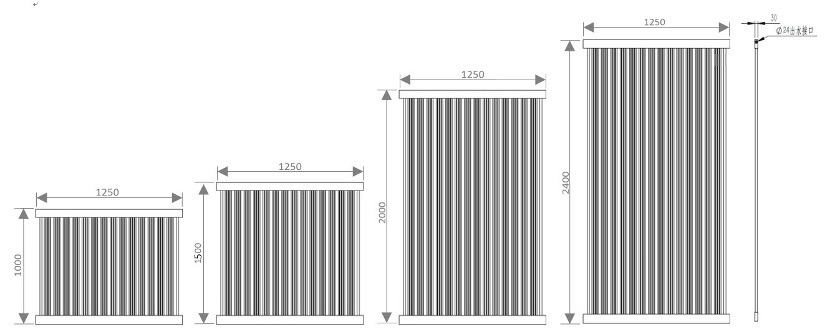

E-MEM^® MBR module EM-MBR-PVDF-XX series dimension

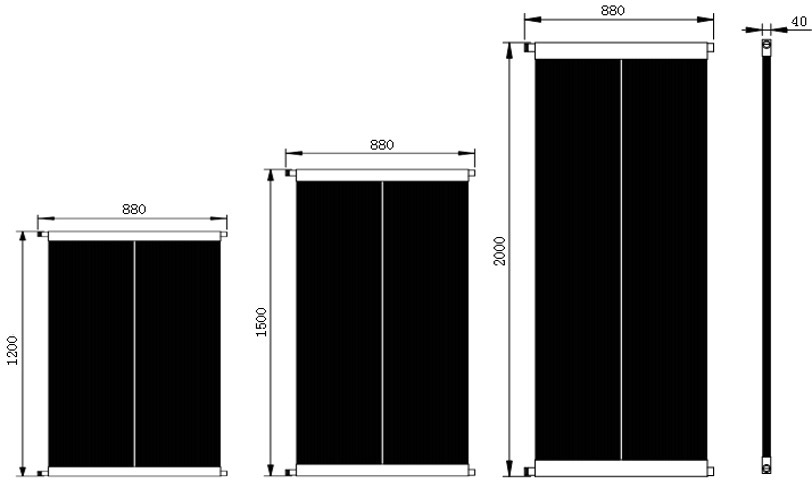

E-MEM^® MBR module EM-MBR-PVDF-XX A series dimension

Product specification sheet

Membrane specification
Material	PVDF/PET supporting tube	type	Out-in hollow fiber
ID/OD	1.1/2.0mm	Pore size	0.1μm
Fiber strength	>150N	Instant burst strength	>0.45MPa
Module parameter
Model	EM-MBR-PVDF-15	EM-MBR-PVDF-20	EM-MBR-PVDF-30	EM-MBR-PVDF-35
Effective area	15	20	30	35
Module size	1250×30×1000	1250×30×1200	1250×30×2000	1250×30×2400
Water collecting mode	single end	Two ends	Two ends	Two ends
Housing materials	ABS	End sealing material	Epoxy resin adhesive/polyurethane
Collecting pipe diameter	φ24	Supporting pole material	SUS316
Model	EM-MBR-PVDF-20A	EM-MBR-PVDF-35A	EM-MBR-PVDF-40A
Effective area	20	35	40
Module size	840×50×1200	840×50×2000	840×50×2500
Water collecting mode	Two ends
Housing and end body material	ABS	End sealing material	Epoxy resin adhesive/polyurethane
Collecting pipe diameter	φ40
Working condition
Operation mode	Submerged suction filtration	Working temperature	5-45℃
Operating pressure	-5～-30KPa	Operating pH range	2~11
Max TMP	-50KPa	Filtration period	Due to water quality
Produced water quality
Turbidity	≤ 0.5 NTU	Produced water SDI15	≤5
Permeate suspended solids	≤1mg/L
